Connecting Synology NAS directly to 2 computers?

Synology
,
1

Hi all!

I have recently purchased a Synology DS1621+ (still is in the box)
I am as wondering if it is possible to directly connect to it 2 difference PCs or whether is better to use a network switch for the purpose?

Thanks for in advance for any help received?

Giulio

2

So you can setup two direct connections from the machines to the Synology following these steps:

The one thing will need to do is setup a different static subnet for each one. For example:
First network - 10.10.10.2 (for the synology) 10.10.10.3 (for the computer)
Second network - 10.10.11.2 (for the synology) 10.10.11.3 (for the computer)

but the question is should you. and the answer is probably not unless you are doing 10GbE

I would probably just buy a dirt cheap network switch like this and plug in the following:

  • port 1 - Synology
  • port 2 - computer 1
  • port 3 - computer 2
  • port 4 - your wifi router

The ordering of these ports does not matter, just added for clarity

1 Like
3

thanks for pointing me in the right direction:)

4

No problem!

Adding the custom networking gets tough quick, its a ton easier just to pickup a cheap network switch

5

So it is easier to just use the network switch and connect everything to it and then to the NAS?
Instead of connecting 2 pcs directly to it?
Would you be able to point me to a decent 10 be switch?

6

Thanks again Will, I just read more carefully your previous message, all the Info are there:)

7

However yes I have purchased the 10 gbe expansions so probably I would look for a 10 gbe switch as One of my pcs has a 10 gbe network card.

8

So in this case you have two options:

  1. Use the tutorial from my first comment for just the 10 gig PC, (this is the cheapest)

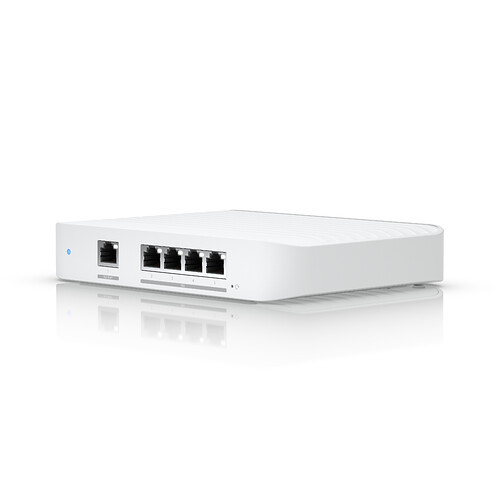

  2. Buy a 10 gig switch. Probably the best one right now (for the price) is this:
1 Like
9

Hi Will,

Sorry to bother you again,I just realized I have a spare NVMe M2, precisely the Samsung 970 EvoPlus, Will it work on my DS1621+?

It seems now synology are only accepting their own hardware but on some forums they say it will work?

Any thoughts?

Thanks

Giulio

10

That will totally work. It will just have to be a SSD cache, rather than a volume. But you can slot it in and set it up as a read only SSD cache
